Supplement to the geared-drills type studies
Return to Randy Roeder's Millers Falls page

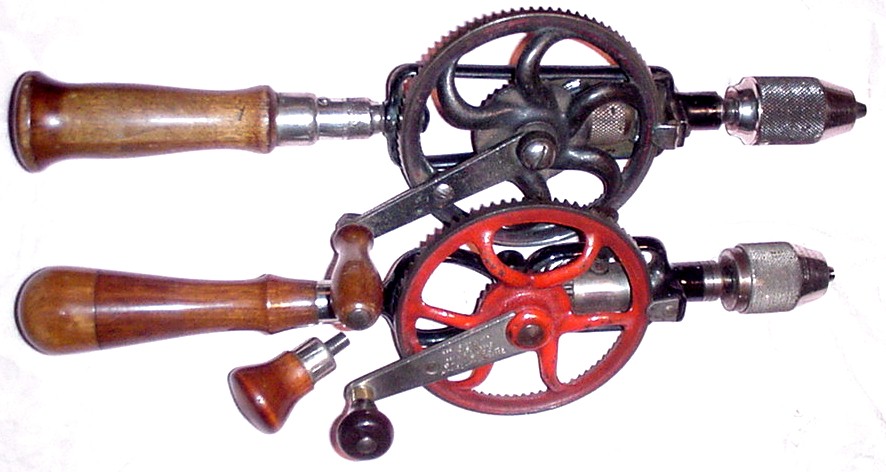

Outboard gear wipers as practiced by

 Millers Falls (upper) on their No.98
and by
Goodell-Pratt (lower) on their No.5-1/2:


But see also the enigma of the Millers Falls No.104 drill.

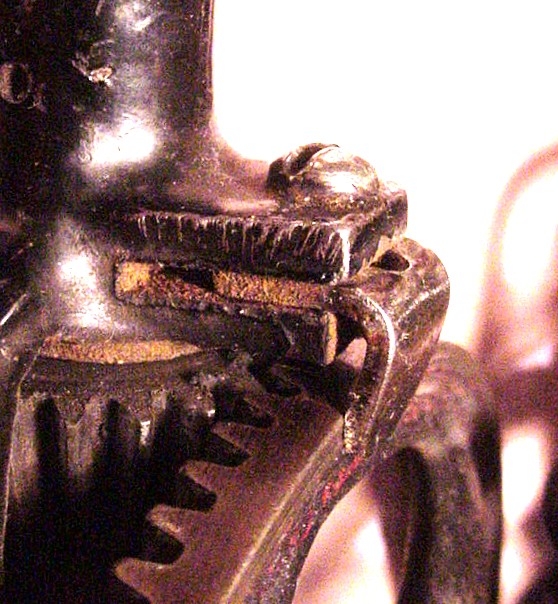

Millers Falls No.98:
The bent wiper is clamped in a slot cut in the malleable-iron frame.

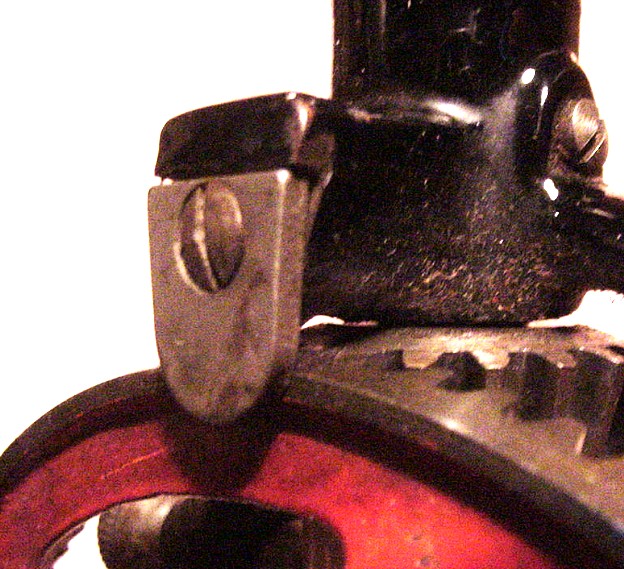

Goodell-Pratt No.5-1/2:
The flat wiper is fastened to a shoulder machined into the malleable-iron frame.
