Edwin Harrington, Son & Co.
Illustrated catalog given to Lamar Lyndon ca.1890.  The firm was located at North Fifteenth Street & Pennsylvania Avenue, Philadelphia, Pennsylvania.
Webpage copyright © George Langford 2010
Machine Tools, ca. 1890 illustrated catalog
Edwin Harrington Radial Drills with Tilting Table, pages 80-81
Tilting Table.

Are the same in every respect as pages 79 and 83, except table, which may be raised and lowered 12 inches, is carefully and strongly fitted to turn in table arm; adjustable and firmly held in place at any desired angle.

Shipping weight,    lbs. $

Shipping weight,         lbs. $
Boxing for foreign shipment, $

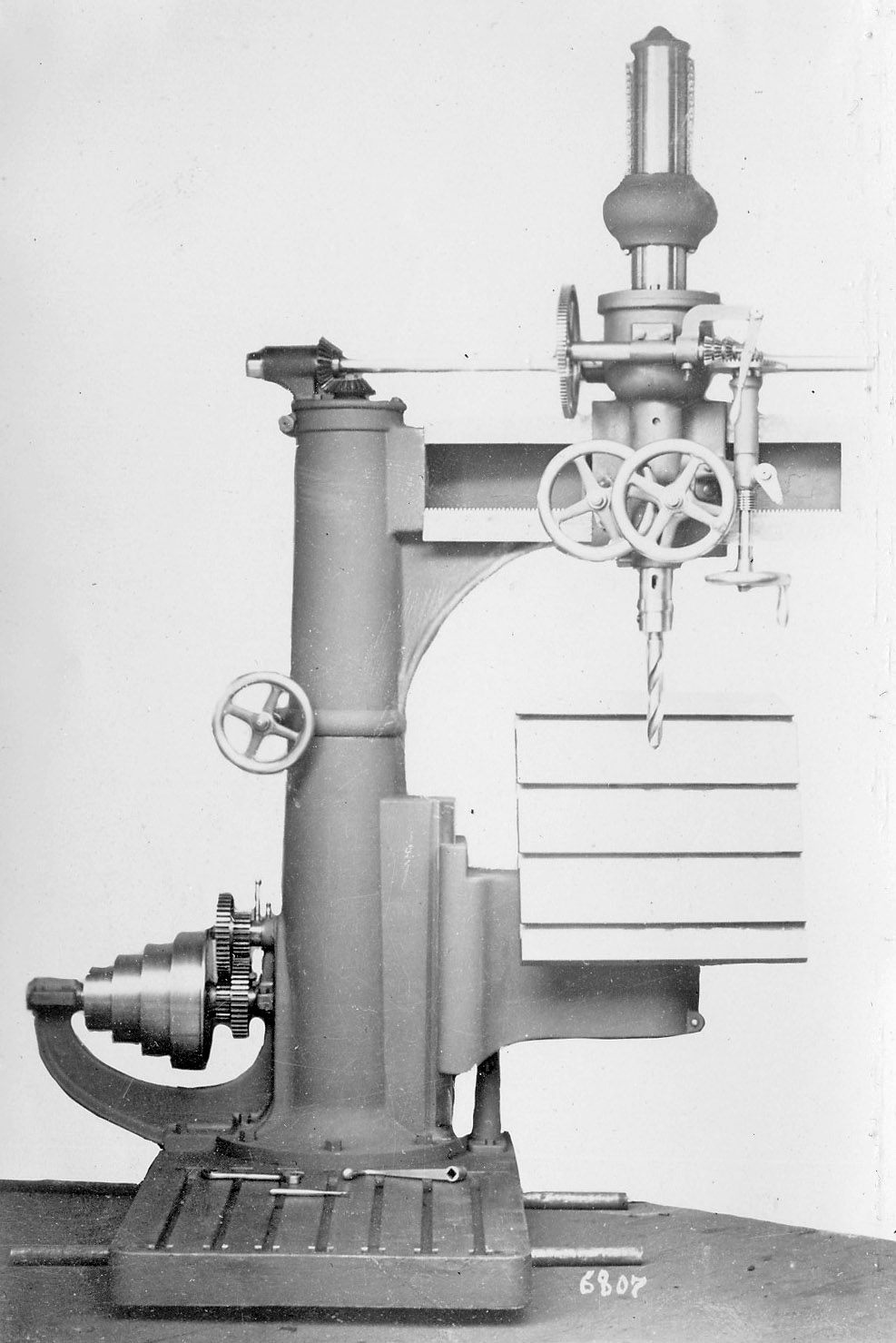

Same style as 48-inch, pages 78 and 80 (photo at left here). Will drill to centre of 102 inches; traverse of spindle, 20 inches; table, 20x32x22; raises and lowers 14 inches; base, 36x59 inches; longest distance spindle to base, 59½ inches; spindle to table, 34 inches. Countershaft, hangers, pulleys, 16x3¾ inches, to run 200 turns per minute.

Shipping weight,           lbs. $725.00
Boxing for foreign shipment, $
