Illustrated
catalog given to Lamar Lyndon ca.1890. The firm was located at
North Fifteenth Street & Pennsylvania Avenue, Philadelphia,
Pennsylvania.
Webpage copyright © George Langford 2010
|
Illustrated
catalog given to Lamar Lyndon ca.1890. The firm was located at
North Fifteenth Street & Pennsylvania Avenue, Philadelphia,
Pennsylvania.
Webpage copyright © George Langford 2010
|
|
 |

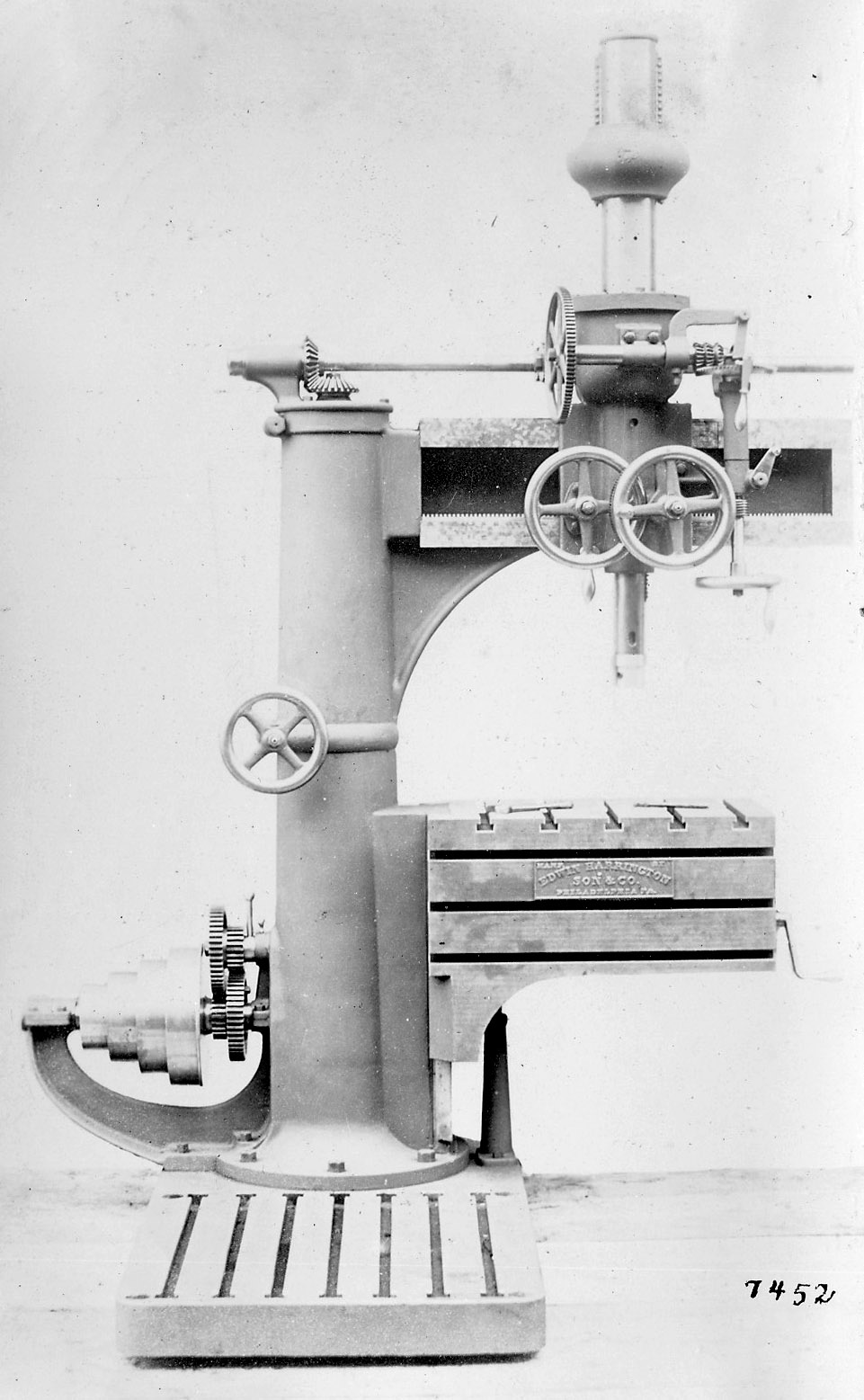

48-INCH RADIAL DRILL.
Will drill to center of 82 inches diameter; strongly and carefully
built with special attention to strength and accuracy when drilling at
end-of arm. Attention is particularly requested to counter-balance of
spindle, which is always constant and does not interfere with belts or
near-by objects; large, heavy column and broad base, 64x32 inches;
radial arm on column and drill head carefully fitted. Spindle has quick
return with traverse of 14 inches; self-oiling reservoir on end insures
lubrication of washers; bored for Morse Standard Twist Drill Taper; 3
changes automatic geared feed; table 29x18 on top and 14 inches deep on
two sides; with T slots for clamping work; raises and lowers 14 inches;
longest distance spindle to base, 52 inches; spindle to table
28½ inches. Countershaft; hangers; pulleys, 14x3½, to run
200 turns per minute.Shipping weight, lbs. $560.00 Boxing for foreign shipment. $ |
