by
George Langford, Sc.D.
Updated December 18, 2016
return to georgesbasement
| Stanley |
[Excepting the 2101 series Yankee braces and Spofford patent
braces] The Stanley Rule & Level Co. and later just The Stanley Works
were the workplaces of a number of loyal and inventive employees. Not
only did the Stanley workforce come up with many lasting innovations,
but the braces embodying those developments have had long and
productive existences. |
| Patentee/ Manufacturer |
Representative
Images (right-click & view image) |
Examples Found by GB |
Patents |
Patent Dates |
Directory of American Tool & Machinery Patents: active years | |||
| Adolphe Leblanc; Charles Mitchell; Hubert Richards; Joseph Bartholomew/ The Stanley Rule & Level Co. |
 |
41, 42 | 711,169 758,329 813,586 822,714 |
October 14, 1902 April 26, 1904 February 27, 1906 June 5, 1906 |
1902-1906 (Leblanc) 1904-1911 (Mitchell) 1906-1912 (Richards) 1904-1909 (Bartholomew) |
|||

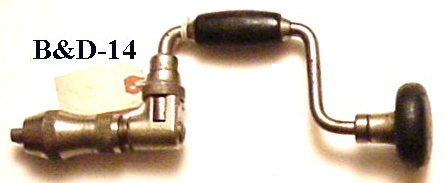

| Charles Mitchell/ The Stanley Rule & Level Co. |  | 14 | 1,011,227 | December 12, 1911 | Better description: Ordnance Dept. X-3 | |||
| Edmund Schade/ The Stanley Rule & Level Co. |
 |
4 | 1,188,363 |
June 20, 1916 |
1892-1927 (Edmund Schade) |
|||
| Harry Parker/ The Stanley Rule & Level Co. |
 |
156 | 1,270,754 |
June 25, 1918 |
1917 (Harry Parker) |
|||
| Walter Murdoch/ The Stanley Works, some with Fray parts |
 |
118, 121, 140 | 1,784,380 |
December 9, 1930 |
1930 (Walter Murdoch) |
|||
| Christian Bodmer; Harris Cook; Austin Stowell/ The Stanley Works |
|
44 No810Stanley825.JPG StanleyNo810brace.htm |
1,562,862 1,825,936 1,880,521 1,915,245 |
November 24, 1925 October 6, 1931 October 4, 1932 June 20, 1933 |
1894-1931 (Bodmer) 1905-1934 (Cook) 1929-1949 (Stowell) |
|||
| Austin Stowell; Harris Cook/ The Stanley Works |
 |
105 | 1,880,521 1,915,245 |
October 4, 1932 June 20, 1933 |
1929-1949 (Stowell) 1905-1934 (Cook) |
|||
| Austin Stowell; Harris Cook/ The Stanley Works |
 |
22, 34, 35 | 1,880,521 1,915,245 |
October 4, 1932 June 20, 1933 |
1929-1949 (Stowell) 1905-1934 (Cook) |
|||
| Harris Cook/ The Stanley Works |
 |
55 | 1,915,245 |
June 20, 1933 | 1905-1934 (Cook) | |||
| Harris Cook/ The Stanley Works |
 |
11 | 1,915,245 | June 20, 1933 | 1905-1934 (Cook) | |||
| Harris Cook; Austin Stowell/ The Stanley Works |
 |
13, 39 | 1,880,521 2,485,991 |
October 4, 1932 October 25, 1949 |
1929-1949 (Stowell) 1905-1934 (Cook) |
|||

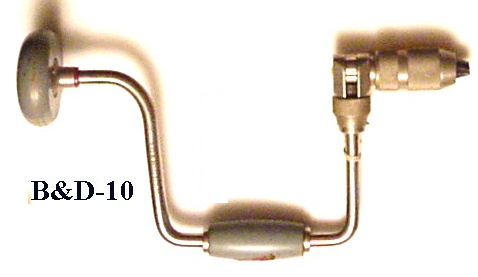

| Stanley Handyman |
 |
10 | Not determined |
Not determined | ||||

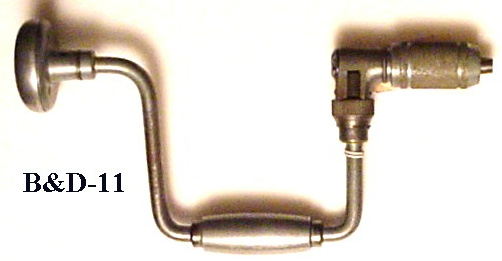

| Stanley No.929 |
 |
133, 175 | Not determined | Not determined | ||||
| Austin Stowell/ Sogard (parts from The Stanley Works) |
 |
100 | 1,880,521 | October 4, 1932 | 1929-1949 (Stowell) |
