Edwin Harrington, Son & Co.
Illustrated catalog given to Lamar Lyndon ca.1890.  The firm was located at North Fifteenth Street & Pennsylvania Avenue, Philadelphia, Pennsylvania.
Webpage copyright © George Langford 2010
 Machine Tools, ca. 1890 illustrated catalog
Edwin Harrington Post Radial Drill, pages 84-85

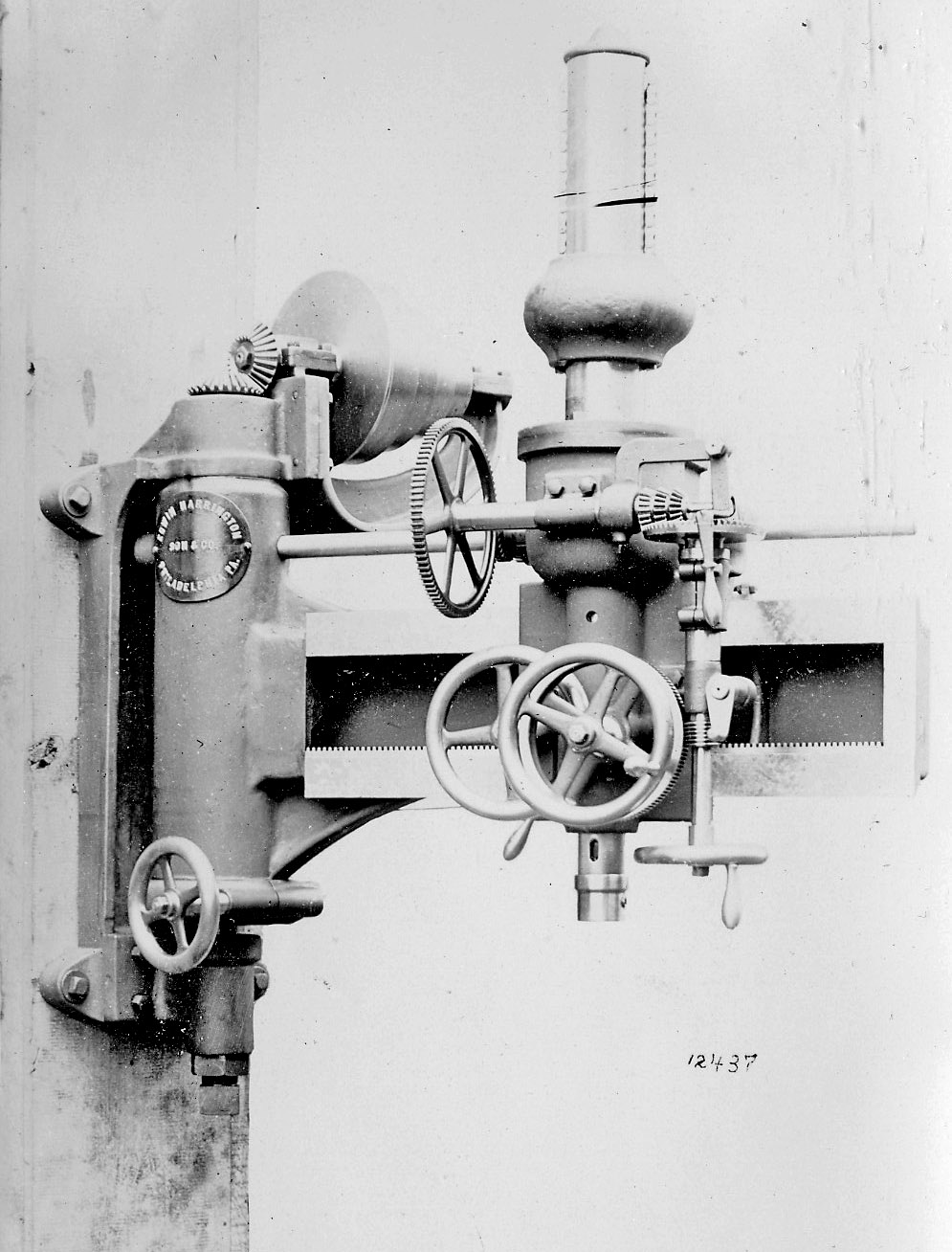

POST RADIAL DRILL.

Designed for bolting to a post or wall, and is used for drilling plates and beams. It will drill holes within a radius of 46 inches, and can be held rigidly in any position desired. Spindle is balanced by weight attached direct to top of spindle; has quick return by rack and pinion attached to hand wheel; spindle has vertical traverse of 14 inches and automatic gear feed of 3 changes; cone has 4 sections, 2¾ face. Shafts and screws are all steel. All cut gearing. Countershaft, hangers, and 2 pulleys, 14x3½, to run 200 revolutions per minute.

Weight,           lbs. $350.00
Boxing for foreign shipment, $
