Edwin Harrington, Son & Co.
Illustrated catalog given to Lamar Lyndon ca.1890.  The firm was located at North Fifteenth Street & Pennsylvania Avenue, Philadelphia, Pennsylvania.
Webpage copyright © George Langford 2010
 Machine Tools, ca. 1890 illustrated catalog
Edwin Harrington Drilling Lathe pages 54-55

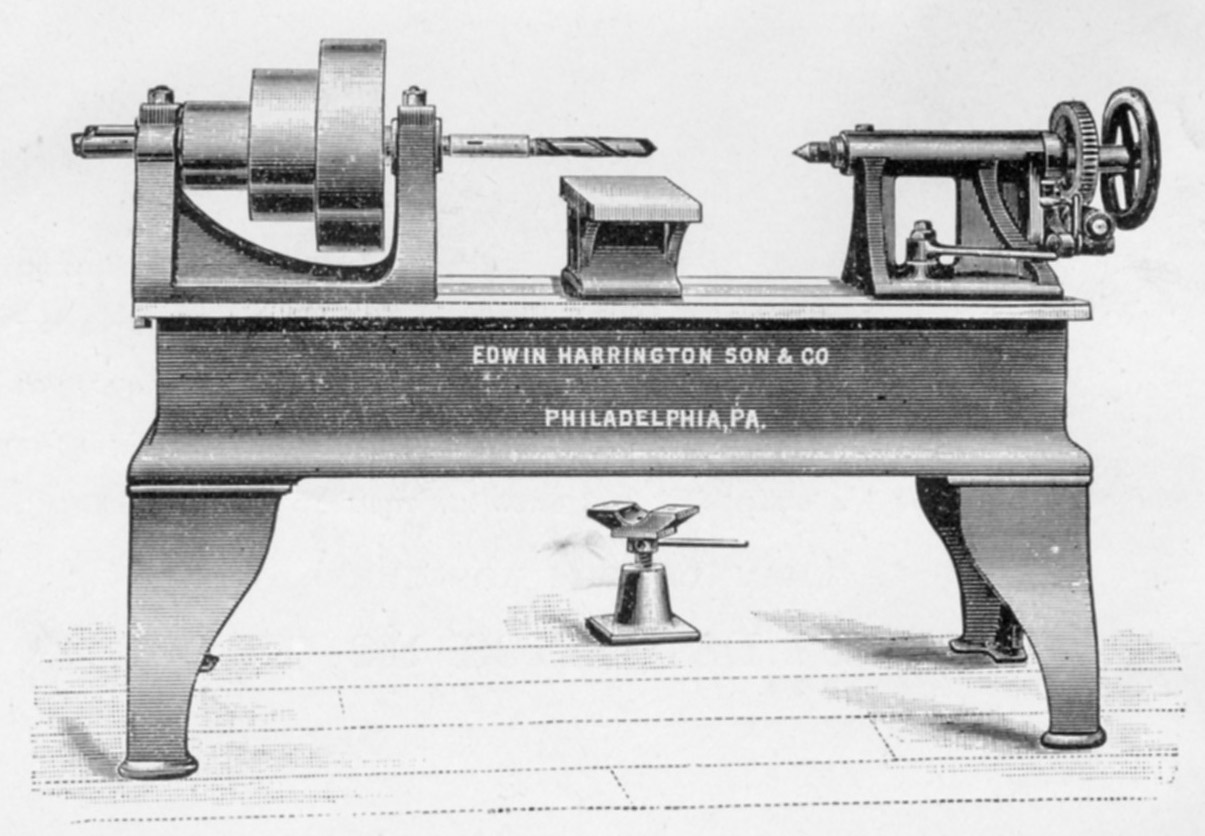

DRILLING LATHE SELF-FEED.

For shafts the vee shaped rest is used.

For drilling shapes such as stub-ends, straps for locomotives, &c-, the other rest is used.

Swings 19 inches over shears; Morse Standard Taper in spindles; pulleys on spindles have 3 sections for 4-inch face. Tail stock spindle has automatic feed. Countershaft, hangers, 2 pulleys, 5 x 16, to run 66 turns per minute; steel wrenches included.

With 5 feet bed; 2 feet centres; shipping weight,    lbs. $
Per extra foot of bed, $
Boxing for foreign shipment, $
