Patented and Distinctive Bit Braces & Augers, a Research Study
by
George Langford, Sc.D.
Updated December 30, 2016
return to georgesbasement
Other inventors/makers
Here is a selection of leftover designs, some of them one-off hybrids (such as 182), some single examples (such as 181, 165, 174, 155, 164, 169, and 166) some owner-made (such as 144 and 45) and one pair of braces with two equivalent patents by different inventors but made by the same company, a violation of patent law: 114 and 154; both inventors claimed to be the sole inventor.

Patentee/
Associate
Representative Images
(right-click & view image)
Examples
Found by GB

Patents
 (same order
as examples)
Patent Dates
(chronological order)
Directory of American
Toolmakers: active years
Cook
Cook's patent bit set
RansomCookPatentAugerBits.htm 8,162
RE2513
13,780
June 17, 1851
March 19, 1867
1852-1868 (Ransom Cook)
Jennings
Russell Jennings bits overall
RussellJenningsAugerBits04232008.htm 12,318 January 30, 1855
1853-1944 (Russell Jennings Mfg. Co.)
Isaac Davidson; Arthur Jennings/
Russell Jennings Co.

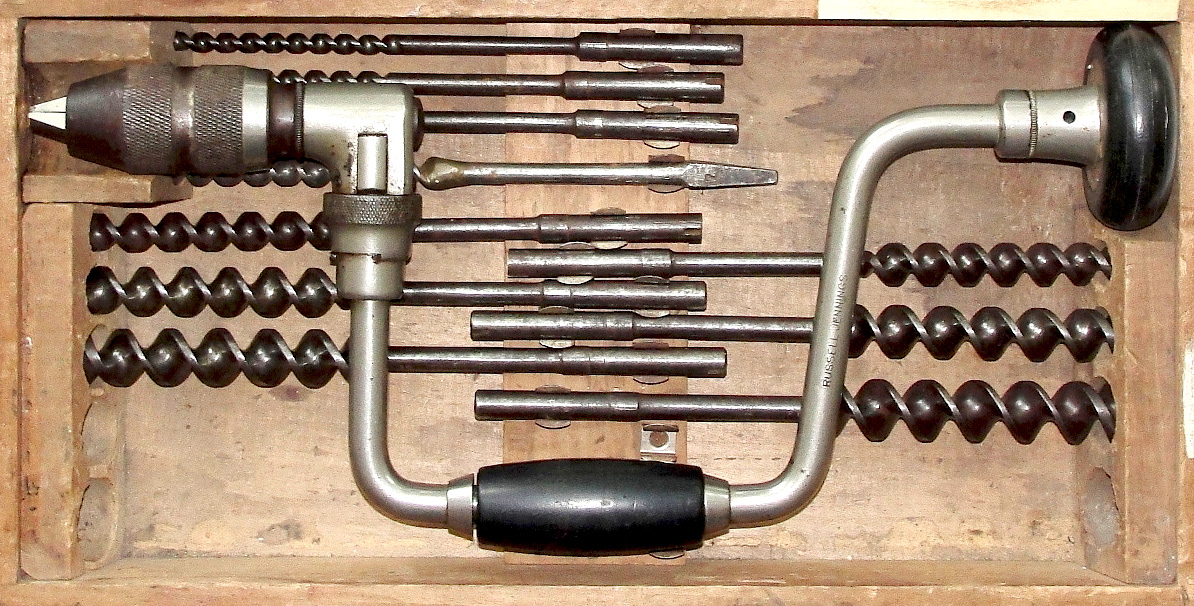

Figure 40 Brace in box
Russell Jennings patent brace & bits 753,241
1,004,572
1,127,007
Mar. 1, 1904
Oct. 3, 1911
Feb. 2, 1915
1904 (Isaac Davidson)
1911-1915 (Arthur Jennings)
William Tucker;
Quimby Backus
unknown

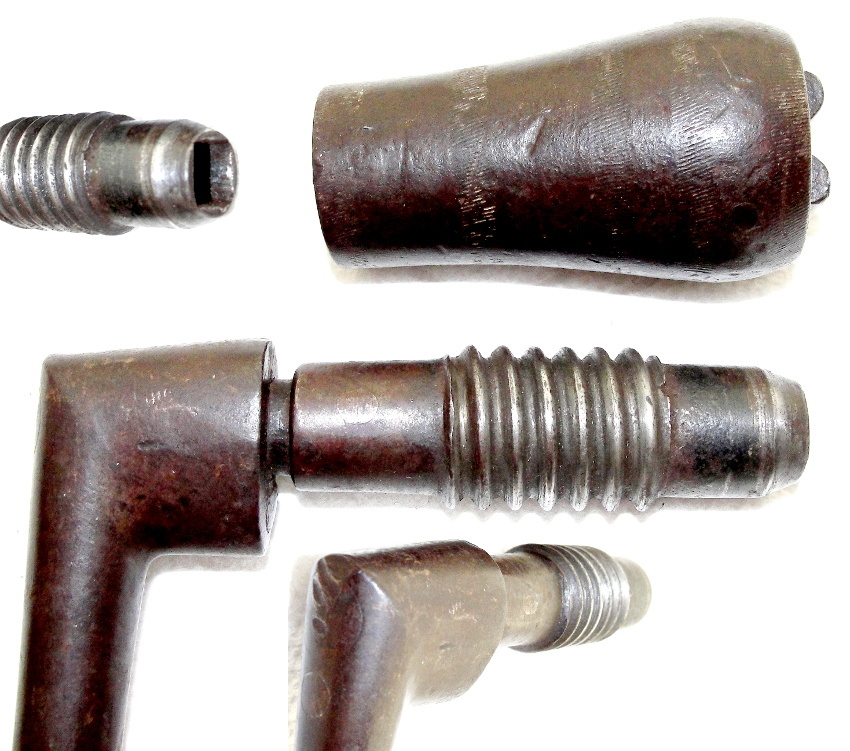

Chuck apart
182 23,326
132,791
March 22, 1859
November 5, 1872
1859-1865 (Tucker Mfg. Co.)
1868-1880 (Quimby Backus)
Milton Nobles/
Nobles Mfg. Co.
Chuck apart
181 48,346
June 20, 1865
1857-1876 (Nobles Mfg. Co.)
A.W. Streeter/
Shepardson & Co.

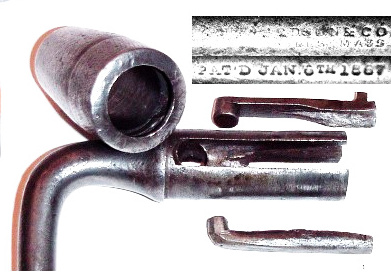

Chuck apart
165 61,113
January 8, 1867
1855-1876 (Shepardson & Co.)
1855-1871 (A.W. Streeter)
H.S. Bartholomew/
H.S. Bartholomew
Chuck apart
174 103,281
May 24, 1870
1861-1879 (H.S. Bartholomew)
H.S. Shepardson/
Shepardson & Co.
Chuck views

Inside of chuck
155 100,458
March 1, 1870
1855-1876 (Shepardson & Co.)
Sylvester Wright/
unknown maker

Canadian patent datePatent date
164 145,710
December 16, 1873
1873 (Sylvester Wright)
William Clarkson/
unknown maker
Jaw spring
168 286,388
October 9, 1883
1850 (William Clarkson)
Hiram Fuller; or
William Bullard/
Fuller Bit Brace Co.
or Fuller Mfg. Co.
Chuck viewsChuck views
114, 154 320,868
347,417
June 23, 1885
August 17, 1886
unknown (Fuller Bit Brace Co.)
1885 (Fuller Mfg. Co.)
Unknown/
unknown
Chuck apart
139 293,957
612,712
February 19, 1884
October 18, 1898
The ratchet mechanism
remains unidentified ...
Steward
Single-crank braces after Steward
JFSteward084.htm 460,256 September 29,1891
Located in remote storage
Unknown/
A.T.W.
Overall
169 12,289
January 23, 1855
Abel Streeter's patent used
for illustration of technique only.
Unknown/
McLaughlin
Chuck apart
166 935,047
175,105
103,281
September 28, 1909
March 21, 1876
May 24, 1870
Too much prior art ...
Unknown/
Winkelhouse
Chuck mechanism
Inside view of chuck
65 95,060
September 21, 1869
Winkelhouse patent used
only for illustration.
Unknown/
Millers Falls
Head viewChuck views
144 None
Not applicable
May be a Millers Falls
ball-bearing chuck.
Unknown/
blacksmith
Overall
Chuck view
45 None
Not applicable Blacksmith-made;
patterned after Spofford design.
Unknown/Consol.
Toolworks
Ratchet mechanism revealed ConsolidatedToolworks383.htm None
Not applicable
"Pat.App'd For"
John Leland; William Ruger/
Millers Falls ?

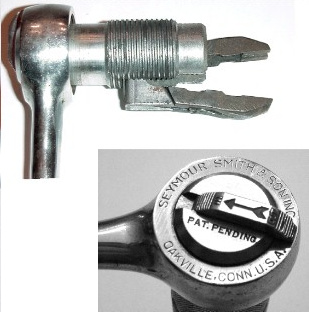

Ruger brace overallMaker's marks & Chuck apart
Ruger-D151719-braces-01252008.htm D151,719
912,582
November 9, 1948; February 16,1909
Three braces: Ruger; A.R.T.I.S.A.N.;Seymour Smith.
